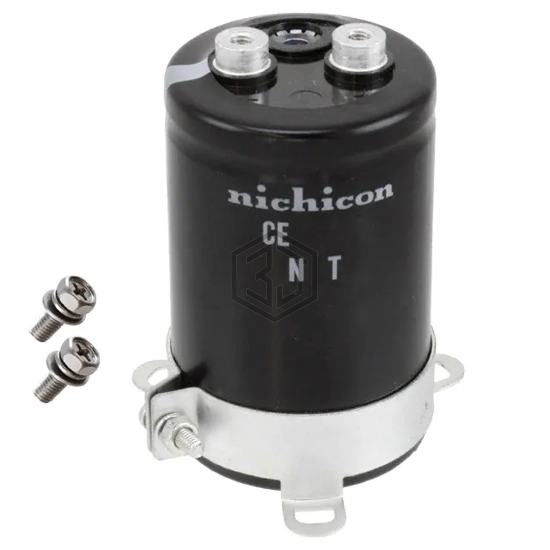

CAP ALUM 10000UF 20% 80V SCREW
LNT1K103MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.21 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1J103MSE | Nichicon | CAP ALUM 10000UF 20% 63V SCREW | 89% | View |
| PEH169MJ5100QB2 | KEMET | CAP ALUM 10000UF 63V SCREW | 85% | View |
| LNT1V103MSE | Nichicon | CAP ALUM 10000UF 20% 35V SCREW | 72% | View |
| E32D500HPN103UDA5U | United Chemi-Con | CAP ALUM 10000UF 50V SCREW | 70% | View |
| B41560A9109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 100V SCREW | 68% | View |
| ALS81H103DB063 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 68% | View |
Submit your RFQ for LNT1K103MSE and get a quote within 24 hours.
