Panasonic Electronic Components
CAP ALUM 1300UF 20% 35V SMD

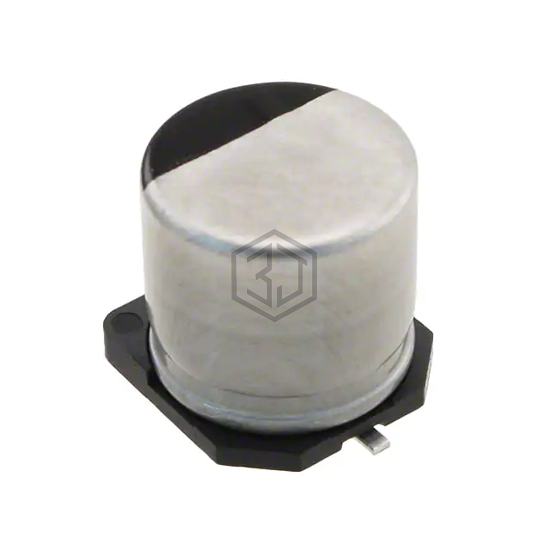

EEE-TP1V132M is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1300UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,901
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 47mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TP1V132V | Panasonic Electronic Components | CAP ALUM 1300UF 20% 35V SMD | 100% | View |
| EEE-TP1H132V | Panasonic Electronic Components | CAP ALUM 1300UF 20% 50V SMD | 80% | View |
| EEE-TP1H132M | Panasonic Electronic Components | CAP ALUM 1300UF 20% 50V SMD | 80% | View |
| MAL214099017E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V SMD | 77% | View |
| MAL214699011E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V SMD | 74% | View |
| MAL224699011E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V SMD | 73% | View |
Submit your RFQ for EEE-TP1V132M and get a quote within 24 hours.
