Panasonic Electronic Components

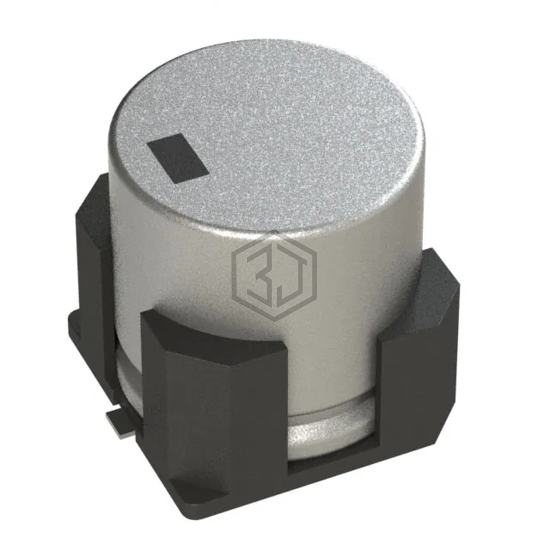

CAP ALUM 1300UF 20% 50V SMD
EEE-TP1H132V is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1300UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 2.175 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TP1H132M | Panasonic Electronic Components | CAP ALUM 1300UF 20% 50V SMD | 100% | View |
| EEE-TP1V132M | Panasonic Electronic Components | CAP ALUM 1300UF 20% 35V SMD | 80% | View |
| EEE-TP1V132V | Panasonic Electronic Components | CAP ALUM 1300UF 20% 35V SMD | 80% | View |
| EEE-TP1H102V | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V SMD | 75% | View |
| MAL214699113E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V SMD | 63% | View |
| MAL224699113E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V SMD | 63% | View |
Submit your RFQ for EEE-TP1H132V and get a quote within 24 hours.
