Panasonic Electronic Components

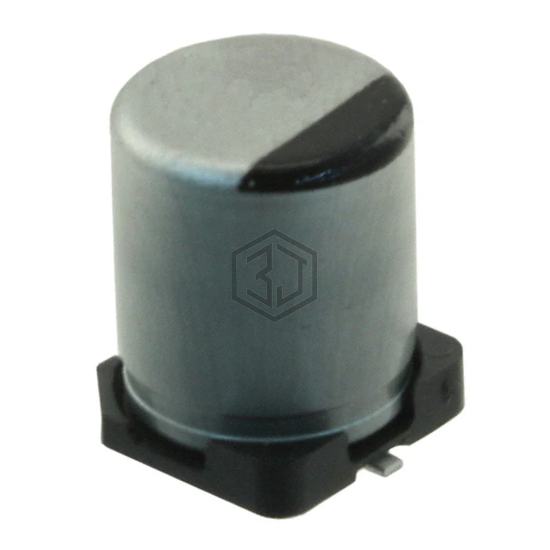

CAP ALUM 330UF 20% 16V SMD
EEE-FTC331XAP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 160 mohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1C331MNL1GS | Nichicon | CAP ALUM 330UF 20% 16V SMD | 90% | View |
| 865080453014 | Würth Elektronik | CAP ALUM 330UF 20% 25V SMD | 84% | View |
| EEE-FK1E331GP | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 83% | View |
| AEH1216331M050R | KYOCERA AVX | ALUMINUM CAP | 73% | View |
| 10TKV330M8X10.5 | Rubycon | CAP ALUM 330UF 20% 10V SMD | 71% | View |
| EMVY630ADA331MLH0S | United Chemi-Con | CAP ALUM 330UF 20% 63V SMD | 69% | View |
Submit your RFQ for EEE-FTC331XAP and get a quote within 24 hours.
