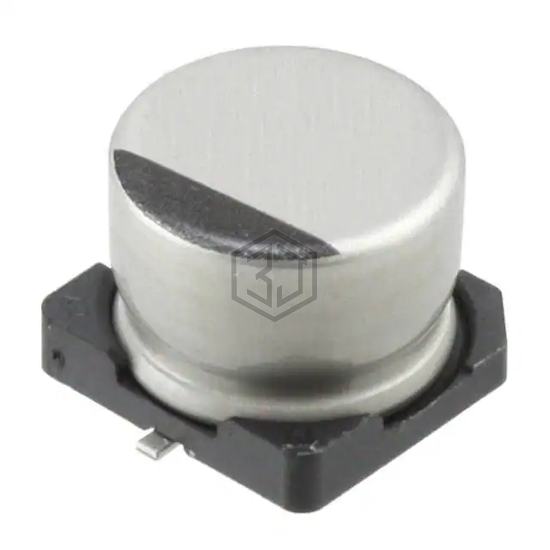

CAP ALUM 330UF 20% 16V SMD
UCL1C331MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FTC331XAP | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 90% | View |
| 10TKV330M8X10.5 | Rubycon | CAP ALUM 330UF 20% 10V SMD | 81% | View |
| EEE-FP1E331AV | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 80% | View |
| EMVY630ADA331MLH0S | United Chemi-Con | CAP ALUM 330UF 20% 63V SMD | 77% | View |
| EEE-FK1V331AP | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 76% | View |
| MAL214097611E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 73% | View |
Submit your RFQ for UCL1C331MNL1GS and get a quote within 24 hours.
