Panasonic Electronic Components

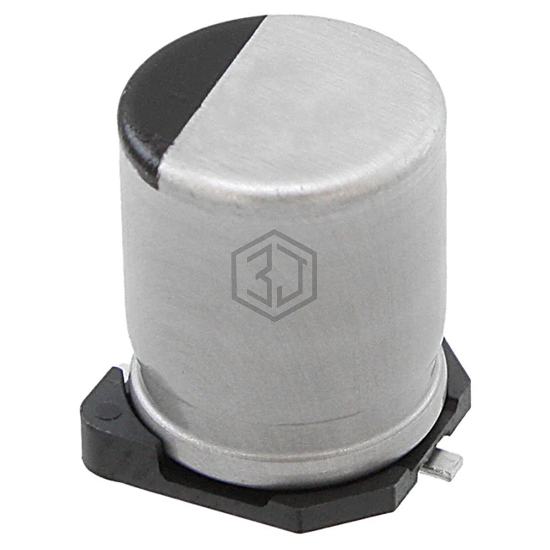

CAP ALUM 1000UF 20% 10V SMD
EEE-FT1A102AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,962
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214097412E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 10V SMD | 98% | View |
| AHA108M10G24T-F | Cornell Dubilier Knowles | CAP ALUM 1000UF 20% 10V SMD | 96% | View |
| UCL1A102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 92% | View |
| UWD1A102MCL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 81% | View |
| UWD0J102MCL1GS | Nichicon | CAP ALUM 1000UF 20% 6.3V SMD | 67% | View |
| UT108M016HGKTA | Aillen | CAP. ALUM 1000UF 16V 20% SMD | 63% | View |
