CAP ALUM 1000UF 20% 6.3V SMD

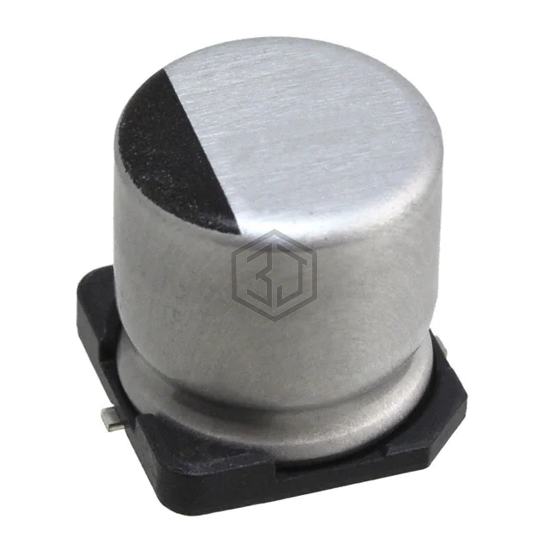

UWD0J102MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,780
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK0J102AV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 92% | View |
| UWD1A102MCL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 88% | View |
| EEE-FK0J102AL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 86% | View |
| UT108M016HGKTA | Aillen | CAP. ALUM 1000UF 16V 20% SMD | 70% | View |
| EEE-FK1A102AL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 70% | View |
| MAL214097412E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 10V SMD | 67% | View |
Submit your RFQ for UWD0J102MCL1GS and get a quote within 24 hours.
