Panasonic Electronic Components

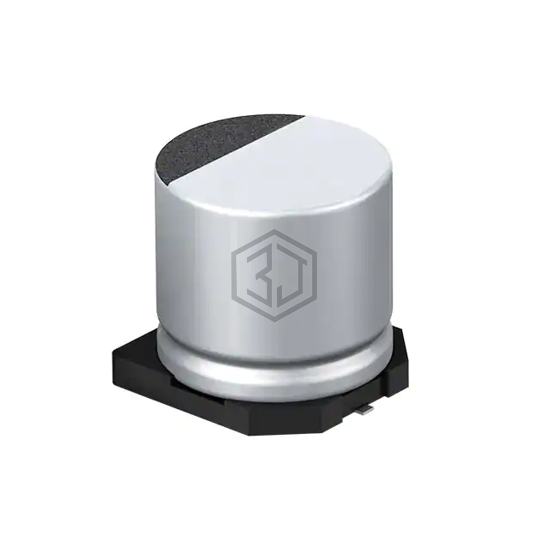

CAP ALUM 1000UF 20% 16V SMD
EEE-FK1C102SP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 2,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ102M1CTR-1616S | SURGE | CAP ALUM 1000UF 20% 16V SMD | 100% | View |
| EEE-FN1A102V | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 84% | View |
| ATB108M010 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 10V SMD | 84% | View |
| EEE-FT1C102AP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 82% | View |
| MAL214099118E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 67% | View |
| EMVY250GDA102MMH0S | United Chemi-Con | CAP ALUM 1000UF 20% 25V SMD | 66% | View |
