Cornell Dubilier / Illinois Capacitor

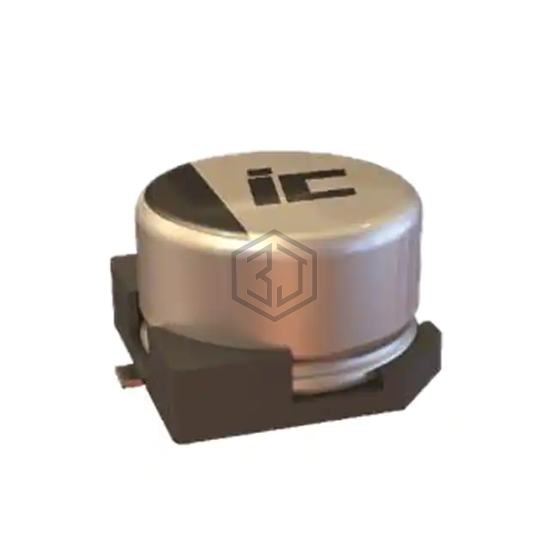

CAP ALUM 1000UF 20% 10V SMD
ATB108M010 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 340mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.417" W (10.30mm x 10.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN1A102V | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 100% | View |
| EEE-FK1A102GP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 94% | View |
| 10TZV1000M10X10.5 | Rubycon | CAP ALUM 1000UF 20% 10V SMD | 92% | View |
| VUJ102M1CTR-1616S | SURGE | CAP ALUM 1000UF 20% 16V SMD | 81% | View |
| MAL214099118E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 74% | View |
| 6.3SKV1000M8X10.5 | Rubycon | CAP ALUM 1000UF 20% 6.3V SMD | 70% | View |
Submit your RFQ for ATB108M010 and get a quote within 24 hours.
