Panasonic Electronic Components
CAP ALUM 2.2UF 20% 35V SMD

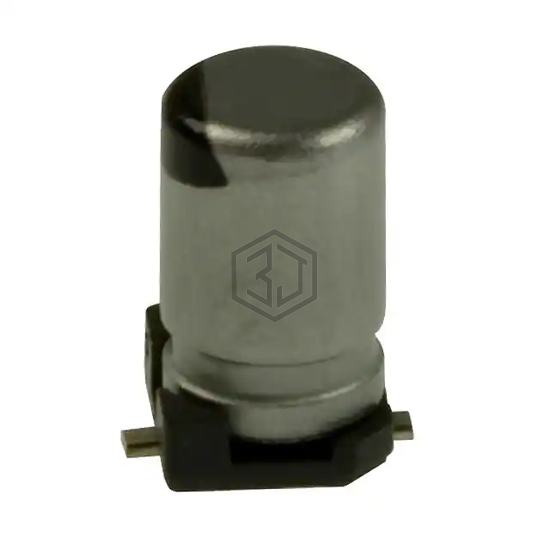

EEE-1VS2R2SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,915
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 13.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-1VS2R2SR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDK225M035S9BAA | KEMET | CAP ALUM 2.2UF 20% 35V SMD | 93% | View |
| 225SVH050MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2.2UF 20% 50V SMD | 77% | View |
| EMVL500ADA2R2MD60G | United Chemi-Con | CAP ALUM 2.2UF 20% 50V SMD | 77% | View |
| 50NSKV2.2M5X5.5 | Rubycon | CAP ALUM 2.2UF 20% 50V SMD | 69% | View |
| EEE-HB1H2R2R | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V SMD | 56% | View |
| EEE-1HA2R2NR | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V SMD | 56% | View |
Submit your RFQ for EEE-1VS2R2SR and get a quote within 24 hours.
