CAP ALUM 2.2UF 20% 50V SMD

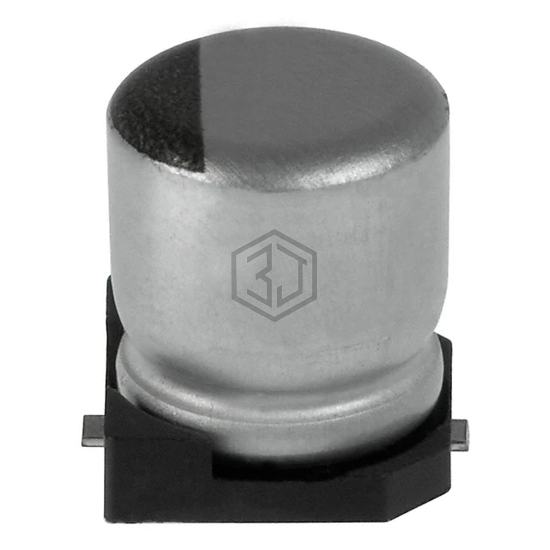

EMVL500ADA2R2MD60G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2.2UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 mA @ 120 Hz |
| Ripple Current @ High Frequency | 16.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 225SVH050MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2.2UF 20% 50V SMD | 100% | View |
| EEV-HD1H2R2R | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V SMD | 93% | View |
| UUP1H2R2MCL1GS | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 92% | View |
| 50NSKV2.2M5X5.5 | Rubycon | CAP ALUM 2.2UF 20% 50V SMD | 92% | View |
| EMVE630ADA2R2MD55G | United Chemi-Con | CAP ALUM 2.2UF 20% 63V SMD | 88% | View |
| EEE-HB1H2R2R | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V SMD | 79% | View |
Submit your RFQ for EMVL500ADA2R2MD60G and get a quote within 24 hours.
