Panasonic Electronic Components
CAP ALUM 10UF 20% 25V SMD

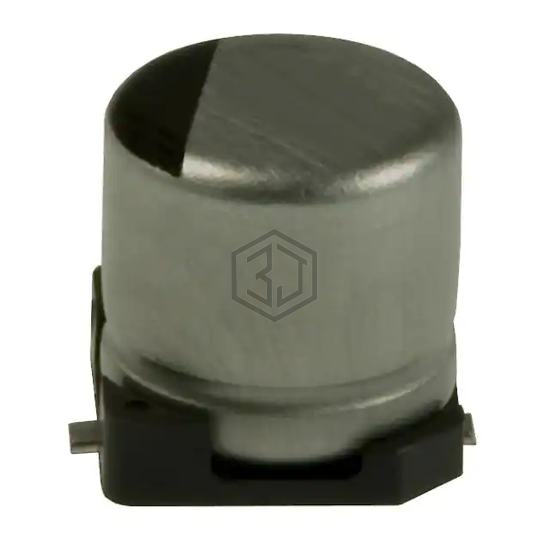

EEE-1EA100SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,213
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 47.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-1EA100SR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HAE100WAR | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 88% | View |
| 865090543004 | Würth Elektronik | CAP ALUM 10UF 20% 35V SMD | 87% | View |
| AVS106M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 16V SMD | 86% | View |
| BMVK350ADA100MF60G | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 80% | View |
| 50SLV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 67% | View |
| EEE-FN1H100UR | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 65% | View |
