Panasonic Electronic Components

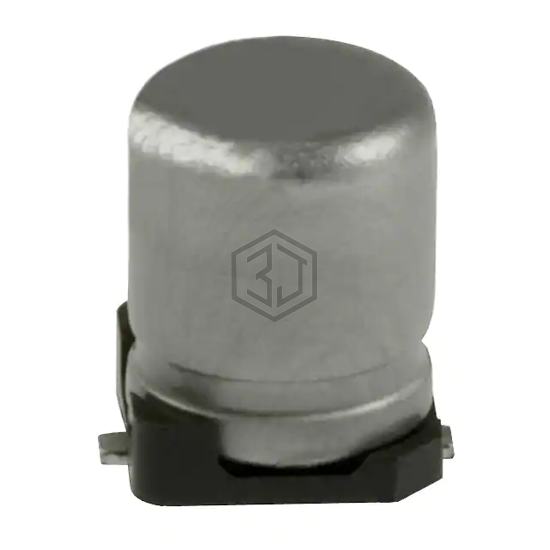

CAP ALUM 22UF 20% 16V SMD
EEE-1CA220NP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 66.3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 226SML025MD5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 25V SMD | 82% | View |
| EEE-FK1C220UR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 80% | View |
| EMVY100ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 10V SMD | 76% | View |
| UWT1H220MCR6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 75% | View |
| 35TXV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 73% | View |
| ATB226M010 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 10V SMD | 67% | View |
Submit your RFQ for EEE-1CA220NP and get a quote within 24 hours.
