Panasonic Electronic Components
CAP ALUM 15UF 20% 50V RADIAL

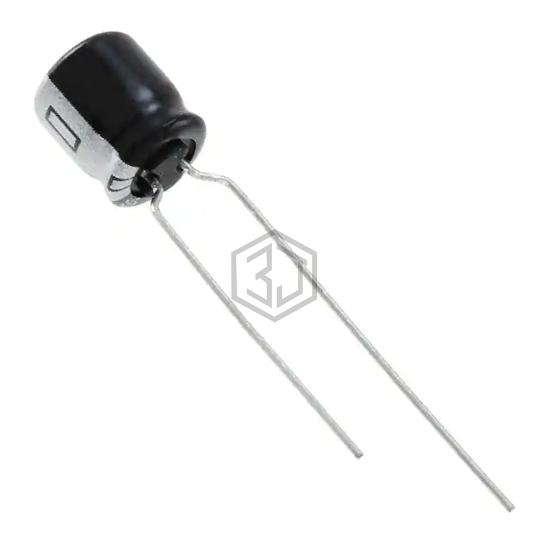

EEA-GA1H150B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 15UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,045
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85.25 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212327159 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 40V AXIAL | 87% | View |
| MAL212387159 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 40V AXIAL | 87% | View |
| UPW1J150MED1TD | Nichicon | CAP ALUM 15UF 20% 63V RADIAL | 86% | View |
| UPW1J150MEH | Nichicon | CAP ALUM 15UF 20% 63V RADIAL | 86% | View |
| UPJ1H150MDD1TA | Nichicon | CAP ALUM 15UF 20% 50V RADIAL | 81% | View |
| UPM1K150MED1TD | Nichicon | CAP ALUM 15UF 20% 80V RADIAL | 80% | View |
Submit your RFQ for EEA-GA1H150B and get a quote within 24 hours.
