CAP ALUM 15UF 20% 80V RADIAL

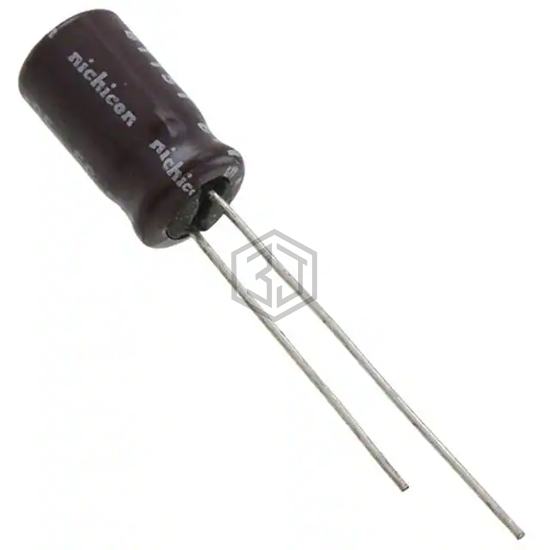

UPM1K150MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,249
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 104 mA @ 10 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K150MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1H150B | Panasonic Electronic Components | CAP ALUM 15UF 20% 50V RADIAL | 80% | View |
| UPW2A150MPD1TA | Nichicon | CAP ALUM 15UF 20% 100V RADIAL | 77% | View |
| UPW2A150MPD | Nichicon | CAP ALUM 15UF 20% 100V RADIAL | 77% | View |
| UMF1E150MDD1TE | Nichicon | CAP ALUM 15UF 20% 25V RADIAL | 77% | View |
| 860080773002 | Würth Elektronik | CAP ALUM 15UF 20% 63V RADIAL | 74% | View |
| MAL211651159E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 50V RADIAL | 74% | View |
Submit your RFQ for UPM1K150MED1TD and get a quote within 24 hours.
