Panasonic Electronic Components

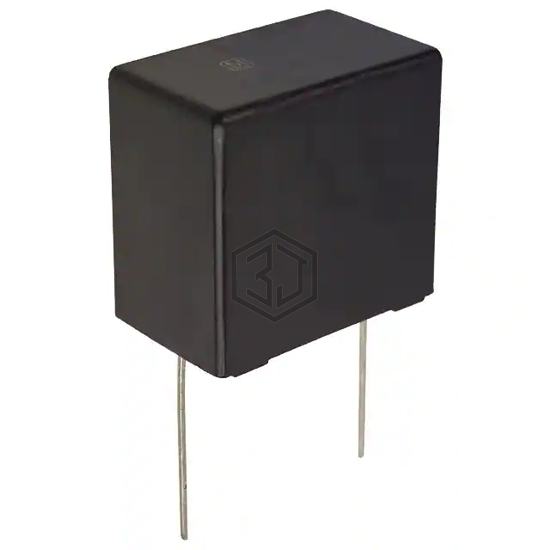

CAP FILM 1UF 20% 300VAC RADIAL
ECQ-U3A105MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1UF 20% 300VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 300V, package / case Radial.
In Stock: 3,861
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.063" L x 0.650" W (27.00mm x 16.50mm) |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
ECQ-U3A105MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F1778510K3KLB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 630VDC RADIAL | 99% | View |
| 16204-06 | Iskra | KNB1560 1U 10% 275V L3 R27.5 CD | 98% | View |
| 15246-06 | Iskra | KNB1560 1U 10% 275V L4 R22.5 | 98% | View |
| 66398-22 | Iskra | KNB1530 1U 10% 275V L3.4 R27.5 | 98% | View |
| 105PHB600K2H | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 600VDC RADIAL | 97% | View |
| 105PHB700K2H | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 700VDC RADIAL | 95% | View |
Submit your RFQ for ECQ-U3A105MG and get a quote within 24 hours.
