Cornell Dubilier / Illinois Capacitor

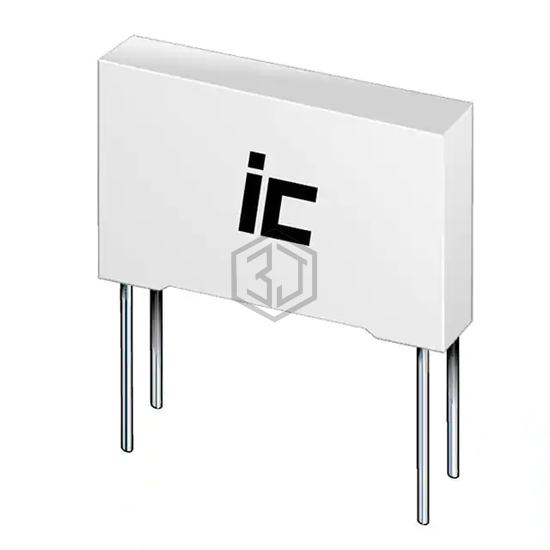

CAP FILM 1UF 10% 700VDC RADIAL
105PHB700K2H is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1UF 10% 700VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - dc 700V, package / case Radial.
In Stock: 1,319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 700V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.6 mOhms |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.709" W (32.00mm x 18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 105PSB700K4H | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 700VDC RADIAL | 99% | View |
| 105PHB850K2J | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 850VDC RADIAL | 96% | View |
| 16204-06 | Iskra | KNB1560 1U 10% 275V L3 R27.5 CD | 93% | View |
| 15246-06 | Iskra | KNB1560 1U 10% 275V L4 R22.5 | 93% | View |
| 66398-22 | Iskra | KNB1530 1U 10% 275V L3.4 R27.5 | 93% | View |
| 105PSB102K4J | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 1KVDC RADIAL | 90% | View |
