Panasonic Electronic Components

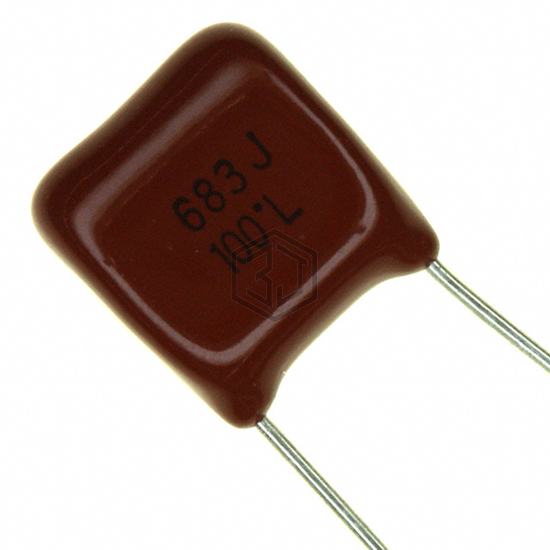

CAP FILM 0.068UF 5% 100VDC RAD
ECQ-B1683JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.068UF 5% 100VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 5,687
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.068 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.394" L x 0.217" W (10.00mm x 5.50mm) |
| Height - Seated (Max) | 0.528" (13.40mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1683JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC236525683 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% 100VDC RAD | 100% | View |
| ECQ-V1683JM2 | Panasonic Electronic Components | CAP FILM 0.068UF 5% 100VDC RAD | 100% | View |
| B32561J3683J000 | EPCOS - TDK Electronics | CAP FILM 0.068UF 5% 250VDC 2DIP | 84% | View |
| MKP383368040JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 400VDC RAD | 75% | View |
| BFC233822683 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 20% 630VDC RAD | 71% | View |
| PHE450SF5680JR06L2 | KEMET | CAP FILM 0.068UF 5% 2KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B1683JF and get a quote within 24 hours.
