Panasonic Electronic Components

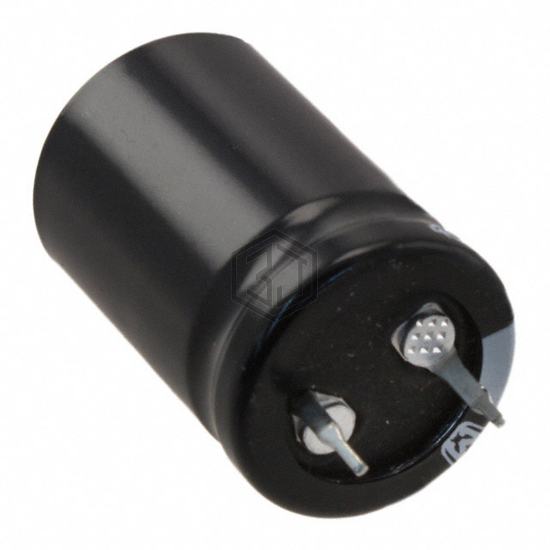

CAP ALUM 56UF 20% 450V SNAP
ECO-S2WP560AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,746
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.96Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP560AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2G560MHD | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 88% | View |
| ELXM451VSN560MP30S | United Chemi-Con | CAP ALUM 56UF 20% 450V SNAP | 86% | View |
| EKXL451ELL560ML25S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL TH | 86% | View |
| 400HXW56MEFR12.5X25 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 85% | View |
| EKXJ401ELL560MJ50S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL | 83% | View |
| LGJ2G560MELB15 | Nichicon | CAP ALUM 56UF 20% 400V SNAP | 77% | View |
Submit your RFQ for ECO-S2WP560AA and get a quote within 24 hours.
