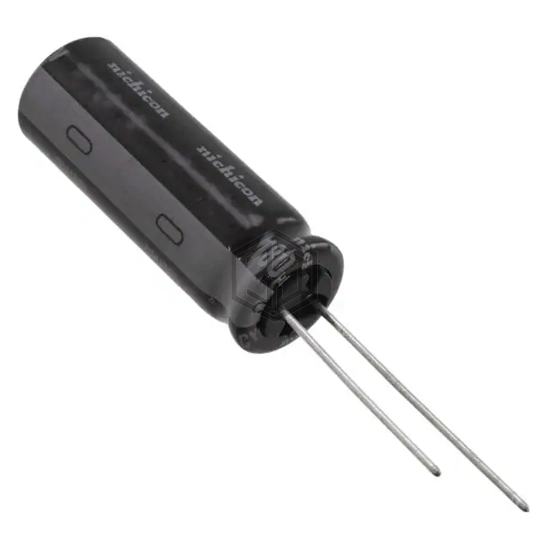

CAP ALUM 56UF 20% 400V RADIAL
UCY2G560MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.26 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ401ELL560MM20S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL | 94% | View |
| EKXL451ELL560ML25S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL TH | 91% | View |
| EKXJ401ELL560MJ50S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL | 88% | View |
| 400HXW56MEFR12.5X25 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 85% | View |
| 450HXW56MEFR14.5X25 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 80% | View |
| 450HXW56MEFR10X40 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 79% | View |
Submit your RFQ for UCY2G560MHD and get a quote within 24 hours.
