Panasonic Electronic Components
CAP ALUM 180UF 20% 450V SNAP

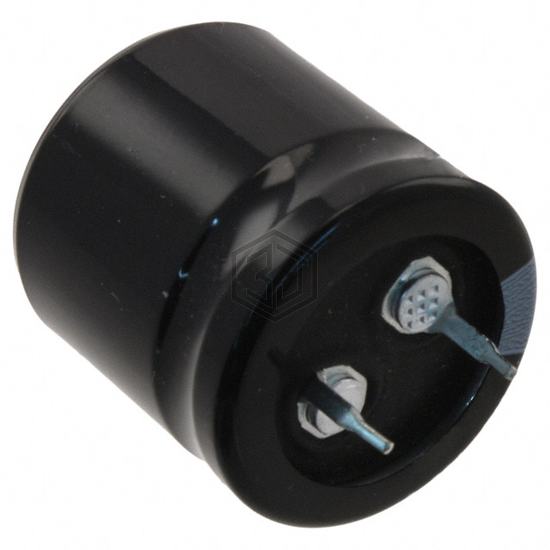

ECO-S2WB181CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,846
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 921mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 870 mA @ 120 Hz |
| Ripple Current @ High Frequency | 991.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB181CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450MXC180MEFCSN35X30 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 95% | View |
| B43508C5187M87 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 95% | View |
| EKMZ451VSN181MP30S | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| LQS2G181MELB25 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 87% | View |
| EKMH401VSN181MQ40W | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 87% | View |
| MAL215969181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 500V SNAP | 77% | View |
Submit your RFQ for ECO-S2WB181CA and get a quote within 24 hours.
