CAP ALUM 180UF 20% 400V SNAP

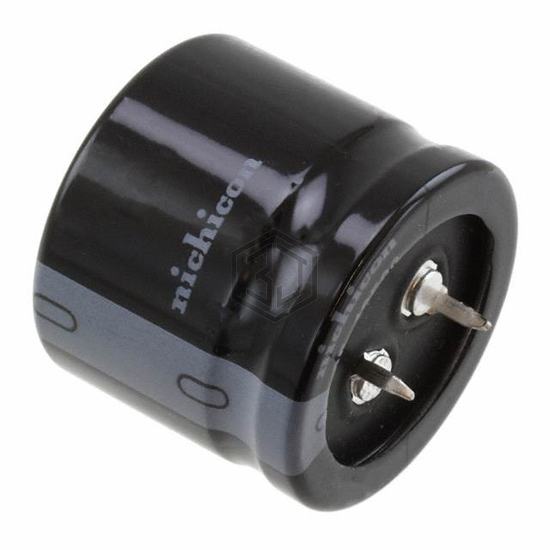

LQS2G181MELB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,098
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3585 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VSN181MQ40W | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 99% | View |
| UPTW6181MRD6 | Nichicon | CAP ALUM 180UF 20% 420V RADIAL | 96% | View |
| MAL209444181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 420V SNAP | 96% | View |
| EKMZ451VSN181MP30S | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 94% | View |
| 450MXC180MEFCSN35X30 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 91% | View |
| MAL215969181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 500V SNAP | 83% | View |
Submit your RFQ for LQS2G181MELB25 and get a quote within 24 hours.
