Panasonic Electronic Components
CAP ALUM 470UF 20% 400V SNAP

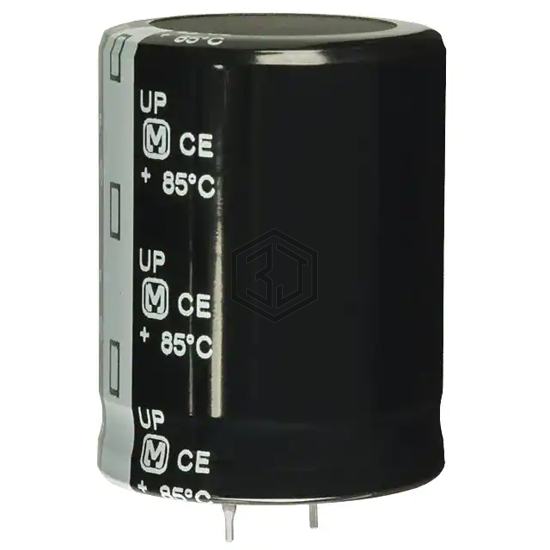

ECO-S2GP471EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,827
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 388mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.346 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GP471EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMR421VSN471MA30S | United Chemi-Con | CAP ALUM 470UF 20% 420V SNAP | 98% | View |
| B43511E5477M007 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 89% | View |
| EKMM421VSN471MA45U | United Chemi-Con | CAP ALUM 470UF 20% 420V SNAP | 88% | View |
| B43640F5477M080 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 86% | View |
| 383LX471M400N042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 400V SNAP | 86% | View |
| LGW2E471MELZ40 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 81% | View |
Submit your RFQ for ECO-S2GP471EA and get a quote within 24 hours.
