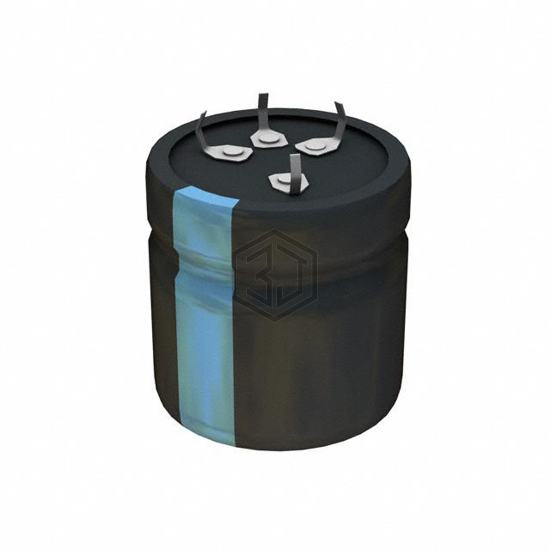

Cornell Dubilier Electronics (CDE)
CAP ALUM 470UF 20% 400V SNAP
383LX471M400N042 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 1,311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 353mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43640F5477M080 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 95% | View |
| EKMM421VSN471MA45U | United Chemi-Con | CAP ALUM 470UF 20% 420V SNAP | 95% | View |
| 477LMB250M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 250V SNAP | 82% | View |
| MAL205963471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 250V SNAP | 80% | View |
| LGW2E471MELZ40 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 77% | View |
| EKMQ251VSN471MQ30S | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 76% | View |
Submit your RFQ for 383LX471M400N042 and get a quote within 24 hours.
