Panasonic Electronic Components
CAP ALUM 470UF 20% 200V SNAP

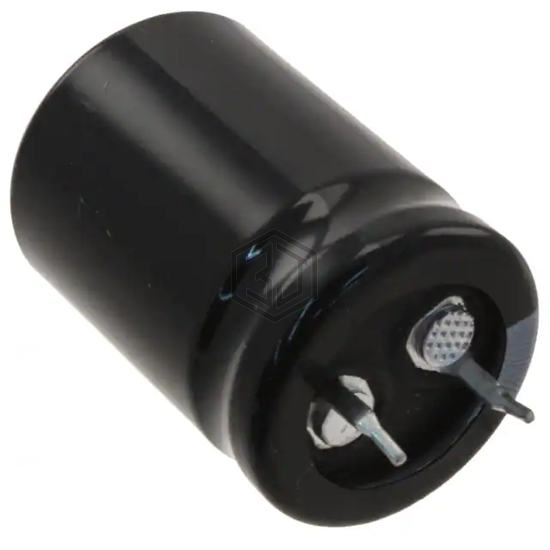

ECO-S2DB471BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,246
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 423mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.596 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB471BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXG470MEFC10X12.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL TH | 68% | View |
| 50TXW470MEFC8X50 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 66% | View |
| EKYA500ELL471MK20S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 65% | View |
| B41856C5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 65% | View |
| 678D477M040EK3DE3 | Vishay Sprague | CAP ALUM 470UF 20% 40V RADIAL | 63% | View |
| EKZE250ELL471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 60% | View |
Submit your RFQ for ECO-S2DB471BA and get a quote within 24 hours.
