Panasonic Electronic Components
CAP ALUM 1800UF 20% 200V SNAP

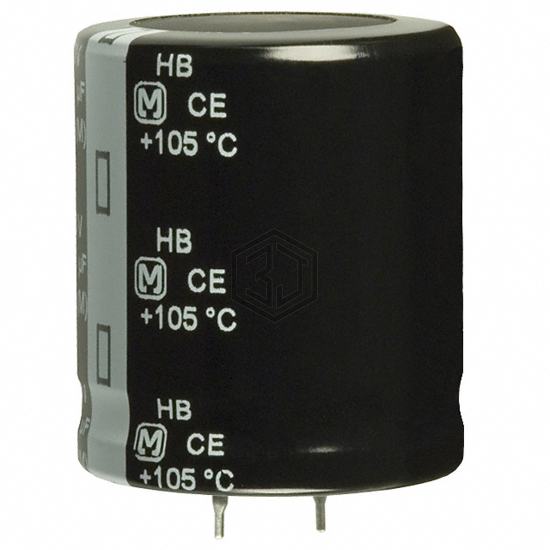

ECO-S2DB182EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,469
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 129mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.078 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB182EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43640E2188M062 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 250V SNAP | 87% | View |
| LAR2E182MELC50 | Nichicon | CAP ALUM 1800UF 20% 250V SNAP | 87% | View |
| 180MXC1800MEFC30X50 | Rubycon | CAP ALUM 1800UF 20% 180V SNAP | 85% | View |
| EKZN250ELL182MK25S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 70% | View |
| ELXG800VSN182MA25W | United Chemi-Con | CAP ALUM 1800UF 20% 80V SNAP | 61% | View |
| 10ZLK1800M10X25 | Rubycon | CAP ALUM 1800UF 20% 10V RADIAL | 53% | View |
Submit your RFQ for ECO-S2DB182EA and get a quote within 24 hours.
