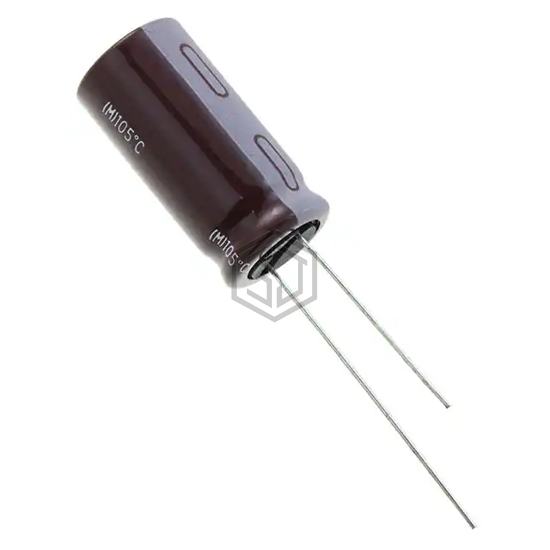

CAP ALUM 1800UF 20% 25V RADIAL
EKZN250ELL182MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.92 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE1E182MHD6 | Nichicon | CAP ALUM 1800UF 20% 25V RADIAL | 90% | View |
| LAR2E182MELC50 | Nichicon | CAP ALUM 1800UF 20% 250V SNAP | 65% | View |
| 10ZLK1800M10X25 | Rubycon | CAP ALUM 1800UF 20% 10V RADIAL | 64% | View |
| 180MXC1800MEFC30X50 | Rubycon | CAP ALUM 1800UF 20% 180V SNAP | 60% | View |
| EEU-FR0J182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 6.3V RADIAL | 59% | View |
| ELXG800VSN182MA25W | United Chemi-Con | CAP ALUM 1800UF 20% 80V SNAP | 59% | View |
Submit your RFQ for EKZN250ELL182MK25S and get a quote within 24 hours.
