Panasonic Electronic Components
CAP ALUM 680UF 20% 200V SNAP

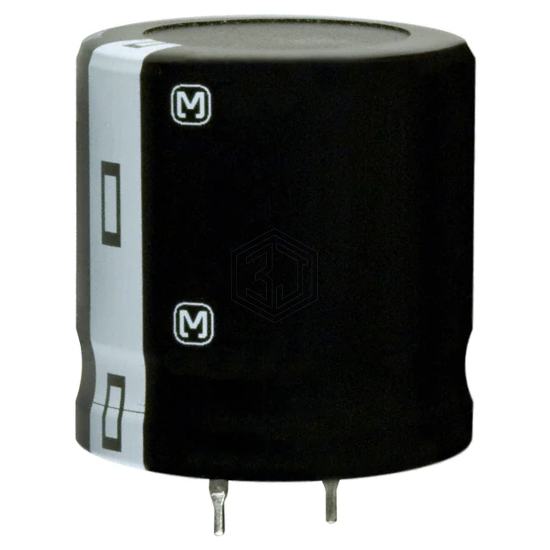

ECO-S2DA681DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,779
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 244mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.38 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DA681DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC680MEFCSN30X30 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 96% | View |
| LGU2P681MELA | Nichicon | CAP ALUM 680UF 20% 220V SNAP | 93% | View |
| LKX2E681MESB40 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 86% | View |
| B43504B2687M87 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 84% | View |
| 100YXH680MEFC18X35.5 | Rubycon | CAP ALUM 680UF 20% 100V RAD TH | 62% | View |
| EV1V681MP51220 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
Submit your RFQ for ECO-S2DA681DA and get a quote within 24 hours.
