Panasonic Electronic Components

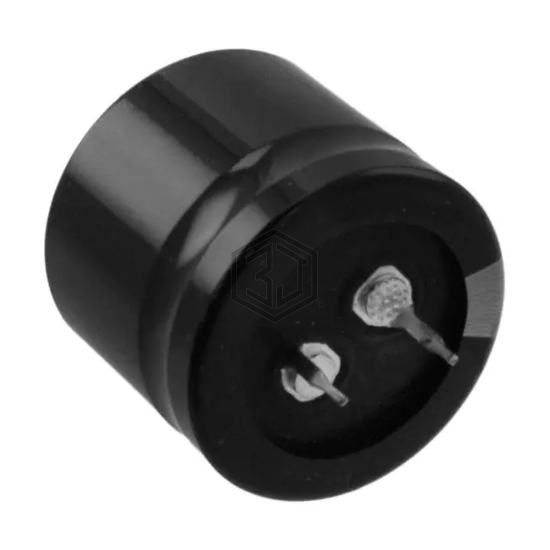

CAP ALUM 1500UF 20% 100V SNAP
ECO-S2AP152DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 3,948
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 155mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.956 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP152DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100USC1500MEFC20X40 | Rubycon | CAP ALUM 1500UF 20% 100V SNAP | 98% | View |
| LGG2C152MELB35 | Nichicon | CAP ALUM 1500UF 20% 160V SNAP | 79% | View |
| EEU-FM1E152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 77% | View |
| LKG1J152MESYBK | Nichicon | CAP ALUM 1500UF 20% 63V SNAP | 75% | View |
| EKZH350ELL152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 70% | View |
| B43305B2158M80 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 62% | View |
