Panasonic Electronic Components
CAP ALUM 820UF 20% 100V SNAP

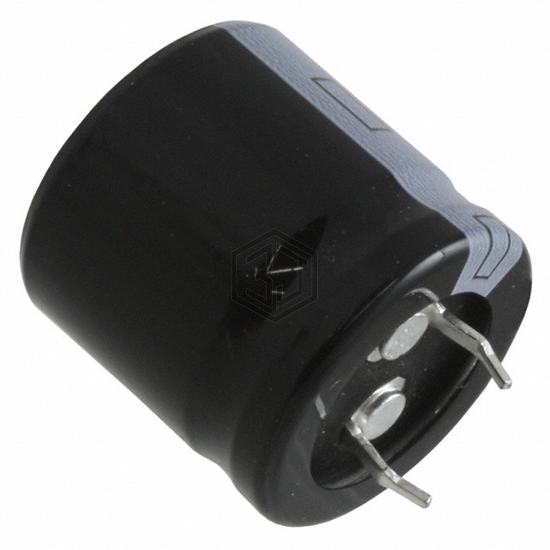

ECO-S2AA821CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 7,691
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 202mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.61 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AA821CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-101ELL821MM40S | United Chemi-Con | CAP ALUM 820UF 20% 100V RADIAL | 84% | View |
| EKYB500ELL821MK30S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 68% | View |
| MAL214658821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 63V RADIAL | 67% | View |
| 16ZT820MT810X23 | Rubycon | CAP ALUM 820UF 20% 16V RADIAL | 66% | View |
| B43508G2827M60 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 66% | View |
| EEU-FS1C821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 16V RADIAL | 65% | View |
Submit your RFQ for ECO-S2AA821CA and get a quote within 24 hours.
