Panasonic Electronic Components

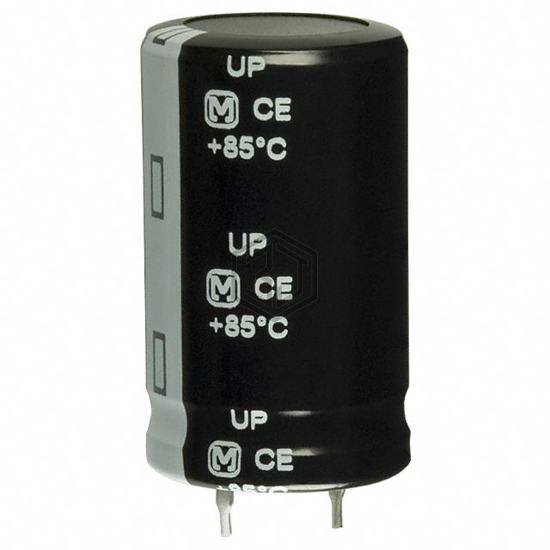

CAP ALUM 5600UF 20% 35V SNAP
ECO-S1VP562AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 8,985
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.864 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP562AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1H562MESAAK | Nichicon | CAP ALUM 5600UF 20% 50V SNAP | 81% | View |
| LGU1J562MELC | Nichicon | CAP ALUM 5600UF 20% 63V SNAP | 80% | View |
| LKSN2562MESC | Nichicon | CAP ALUM 5600UF 20% 56V SNAP | 79% | View |
| B41888C5568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 25V RADIAL | 76% | View |
| 10YXG5600MEFCG412.5X40 | Rubycon | CAP ALUM 5600UF 20% 10V RADIAL | 67% | View |
| B41888D3568M9 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 10V RADIAL | 62% | View |
