CAP ALUM 5600UF 20% 56V SNAP

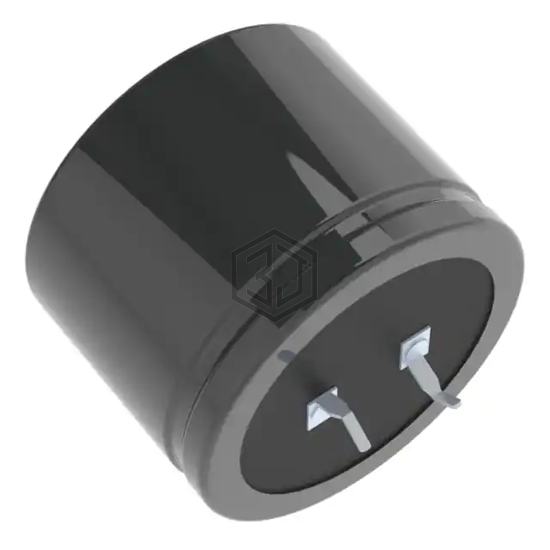

LKSN2562MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 56V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 56 V, package / case Radial, Can - Snap-In.
In Stock: 6,465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 56 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1J562MELC | Nichicon | CAP ALUM 5600UF 20% 63V SNAP | 95% | View |
| LKG1H562MESAAK | Nichicon | CAP ALUM 5600UF 20% 50V SNAP | 92% | View |
| ESMH630VSN562MA30S | United Chemi-Con | CAP ALUM 5600UF 20% 63V SNAP | 90% | View |
| MAL215848562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 63V SNAP | 88% | View |
| EEU-FS1A562SB | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V RADIAL | 65% | View |
| UPA1C562MHD | Nichicon | CAP ALUM 5600UF 20% 16V RADIAL | 62% | View |
Submit your RFQ for LKSN2562MESC and get a quote within 24 hours.
