Panasonic Electronic Components

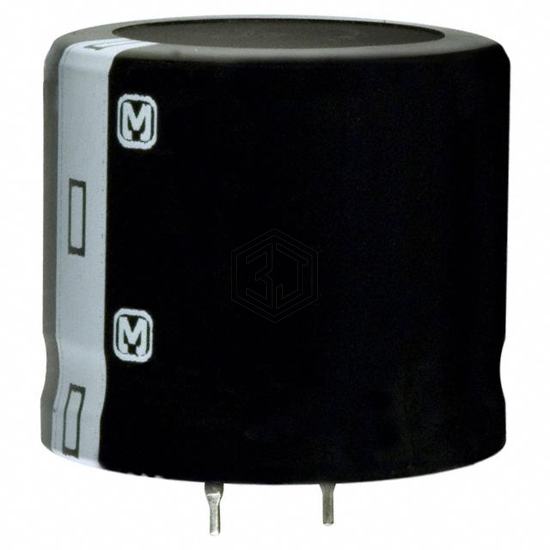

CAP ALUM 12000UF 20% 35V SNAP
ECO-S1VA123EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 12000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,162
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 35mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.025 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VA123EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1V123MELC | Nichicon | CAP ALUM 12000UF 20% 35V SNAP | 96% | View |
| LGU1E123MELZ | Nichicon | CAP ALUM 12000UF 20% 25V SNAP | 77% | View |
| LGY1E123MELZ45 | Nichicon | CAP ALUM 12000UF 20% 25V SNAP | 76% | View |
| 50MXC12000MEFCSN35X40 | Rubycon | CAP ALUM 12000UF 20% 50V SNAP | 76% | View |
| EKZN100ELL123MMP1S | United Chemi-Con | CAP ALUM 12000UF 20% 10V RADIAL | 75% | View |
| 6.3ZLQ12000MEFC16X25 | Rubycon | CAP ALUM 12000UF 20% 6.3V RADIAL | 72% | View |
Submit your RFQ for ECO-S1VA123EA and get a quote within 24 hours.
