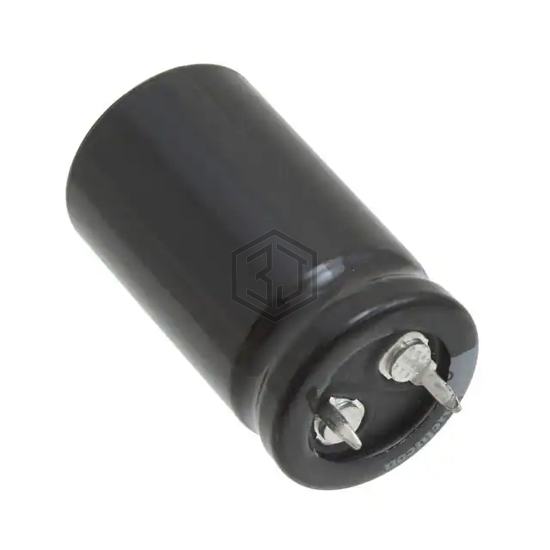

CAP ALUM 12000UF 20% 35V SNAP
LGU1V123MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 2,763
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VSN123MA25U | United Chemi-Con | CAP ALUM 12000UF 20% 25V SNAP | 81% | View |
| ELXZ100ELL123MM40S | United Chemi-Con | CAP ALUM 12000UF 20% 10V RADIAL | 78% | View |
| SLP123M016C3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 16V SNAP | 76% | View |
| 6.3YXG12000MEFC18X31.5 | Rubycon | CAP ALUM 12000UF 20% 6.3V RADIAL | 74% | View |
| 63MXC12000MEFCSN35X50 | Rubycon | CAP ALUM 12000UF 20% 63V SNAP | 63% | View |
| ALC80E123EB040 | KEMET | CAP ALUM 12000UF 20% 40V SNAP | 62% | View |
