Panasonic Electronic Components
CAP ALUM 4700UF 20% 80V SNAP

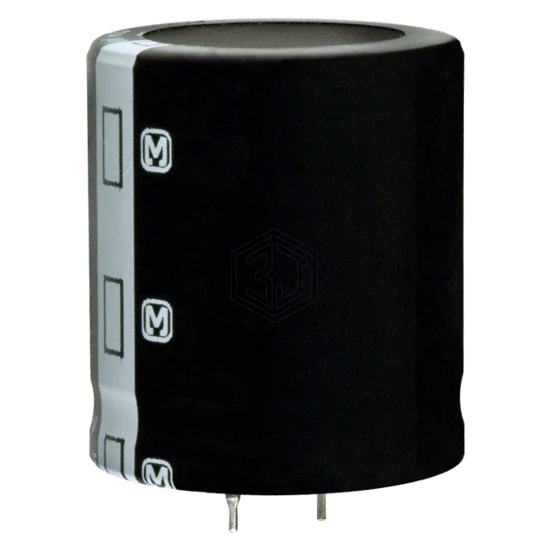

ECO-S1KA472EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 5,660
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 49mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.795 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KA472EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXG4700MEFCSN25X50 | Rubycon | CAP ALUM 4700UF 20% 80V SNAP | 99% | View |
| MAL212015472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V AXIAL | 67% | View |
| EEU-FK1E472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 25V RAD TH | 63% | View |
| 10YXH4700MEFC12.5X35 | Rubycon | CAP ALUM 4700UF 20% 10V RAD TH | 61% | View |
| UPA1C472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 61% | View |
| 6.3YXJ4700M12.5X25 | Rubycon | CAP ALUM 4700UF 20% 6.3V RADIAL | 51% | View |
Submit your RFQ for ECO-S1KA472EA and get a quote within 24 hours.
