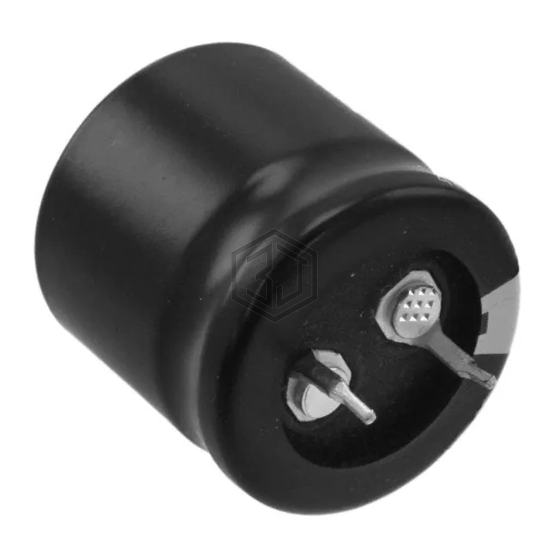

Panasonic Electronic Components
CAP ALUM 8200UF 20% 25V SNAP
ECO-S1EP822CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 7,699
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 65mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.106 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EP822CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1E822MHL | Nichicon | CAP ALUM 8200UF 20% 25V RADIAL | 91% | View |
| EGVD250ELL822MMP1H | United Chemi-Con | CAP ALUM 8200UF 20% 25V RADIAL | 82% | View |
| 381LX822M035J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 80% | View |
| EKMH350VSN822MQ40U | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 72% | View |
| MAL215659822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 100V SNAP | 59% | View |
| UPA0J822MHD6 | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 57% | View |
Submit your RFQ for ECO-S1EP822CA and get a quote within 24 hours.
