CAP ALUM 8200UF 20% 6.3V RADIAL

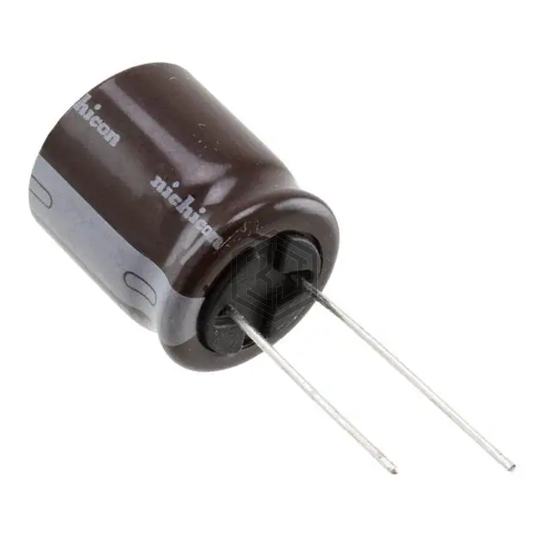

UPA0J822MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,658
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.244 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.64 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41043A2828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 6.3V RADIAL | 94% | View |
| UPW0J822MHH | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 90% | View |
| THAS822M016AB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V FLATPACK | 76% | View |
| ELXZ100ELL822MM30S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 74% | View |
| EEU-FC1A822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 10V RADIAL | 69% | View |
| EEU-HD1C822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 16V RADIAL | 67% | View |
Submit your RFQ for UPA0J822MHD6 and get a quote within 24 hours.
