Panasonic Electronic Components

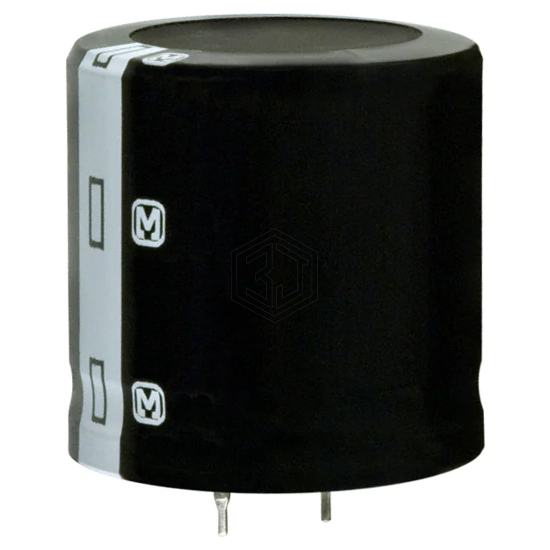

CAP ALUM 18000UF 20% 25V SNAP
ECO-S1EA183EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 18000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 8,773
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 18000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.485 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA183EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1E183MELC | Nichicon | CAP ALUM 18000UF 20% 25V SNAP | 99% | View |
| 25MXC18000MEFCSN25X40 | Rubycon | CAP ALUM 18000UF 20% 25V SNAP | 96% | View |
| 25MXC18000MEFC30X30 | Rubycon | CAP ALUM 18000UF 20% 25V SNAP | 96% | View |
| SLP183M016A4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 16V SNAP | 83% | View |
| SLP183M035H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 35V SNAP | 81% | View |
| EKYB6R3ELL183MMP1S | United Chemi-Con | CAP ALUM 18000UF 20% 6.3V RADIAL | 76% | View |
Submit your RFQ for ECO-S1EA183EA and get a quote within 24 hours.
