Panasonic Electronic Components
CAP ALUM 8200UF 20% 16V SNAP

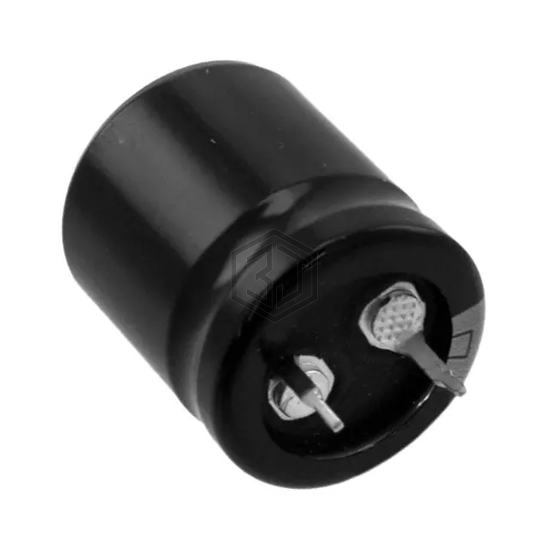

ECO-S1CP822BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 4,247
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 91mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.565 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP822BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16USC8200MEFC20X25 | Rubycon | CAP ALUM 8200UF 20% 16V SNAP | 91% | View |
| 16MXC8200MEFC22X25 | Rubycon | CAP ALUM 8200UF 20% 16V SNAP | 81% | View |
| B41858C3828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 10V RADIAL | 80% | View |
| LP822M050H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 50V SNAP | 75% | View |
| LGU1V822MELB | Nichicon | CAP ALUM 8200UF 20% 35V SNAP | 73% | View |
| 25MXG8200MEFCSN25X25 | Rubycon | CAP ALUM 8200UF 20% 25V SNAP | 73% | View |
Submit your RFQ for ECO-S1CP822BA and get a quote within 24 hours.
