Panasonic Electronic Components
CAP ALUM 8200UF 20% 16V SNAP

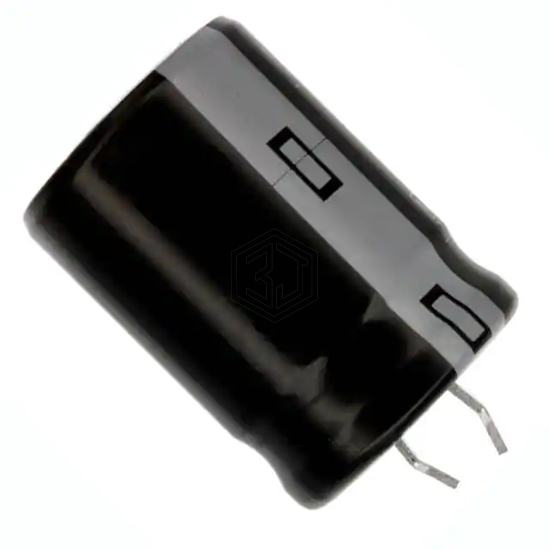

ECO-S1CA822BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 9,841
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 71mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CA822BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1E822MELA | Nichicon | CAP ALUM 8200UF 20% 25V SNAP | 85% | View |
| B41252A5828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 25V SNAP | 81% | View |
| LGY1E822MELA30 | Nichicon | CAP ALUM 8200UF 20% 25V SNAP | 80% | View |
| EKMH350VNN822MQ40S | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 77% | View |
| EEU-FK0J822SB | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RAD TH | 75% | View |
| MAL225626822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 25V SNAP | 71% | View |
Submit your RFQ for ECO-S1CA822BA and get a quote within 24 hours.
