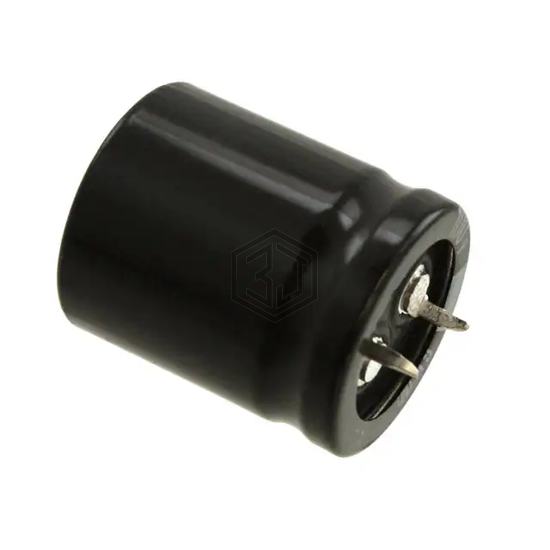

CAP ALUM 8200UF 20% 25V SNAP
LGU1E822MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 8,658
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.34 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.691 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252A5828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 25V SNAP | 99% | View |
| LGY1E822MELA30 | Nichicon | CAP ALUM 8200UF 20% 25V SNAP | 95% | View |
| MAL225626822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 25V SNAP | 90% | View |
| EKMH350VNN822MQ40S | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 88% | View |
| 35MXC8200MEFCSN30X25 | Rubycon | CAP ALUM 8200UF 20% 35V SNAP | 80% | View |
| UPA0J822MHD1TN | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 78% | View |
