Panasonic Electronic Components

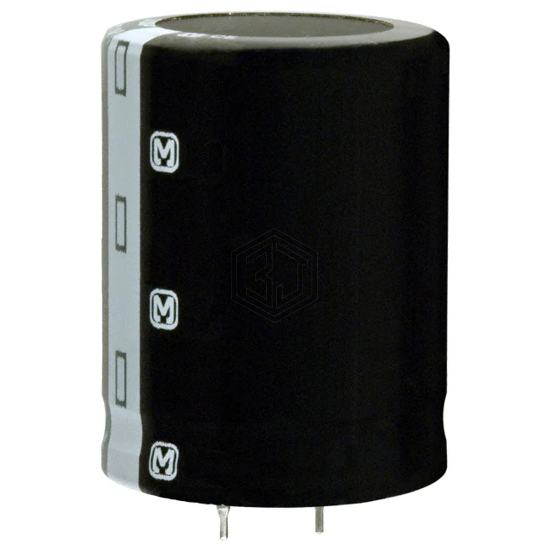

CAP ALUM 47000UF 20% 16V SNAP
ECO-S1CA473EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 6,076
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.325 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CA473EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP473M016H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 16V SNAP | 98% | View |
| EKMH160VSN473MA45U | United Chemi-Con | CAP ALUM 47000UF 20% 16V SNAP | 98% | View |
| EKMH160VSD473MA45U | United Chemi-Con | CAP ALUM 47000UF 20% 16V SNAP | 98% | View |
| 25MXC47000MEFCSN35X50 | Rubycon | CAP ALUM 47000UF 20% 25V SNAP | 80% | View |
| EKMH100VSN473MR45U | United Chemi-Con | CAP ALUM 47000UF 20% 10V SNAP | 71% | View |
| ALC80F473DF025 | KEMET | CAP ALUM 47000UF 20% 25V SNAP | 58% | View |
Submit your RFQ for ECO-S1CA473EA and get a quote within 24 hours.
