Panasonic Electronic Components
CAP ALUM 22UF 20% 25V SMD

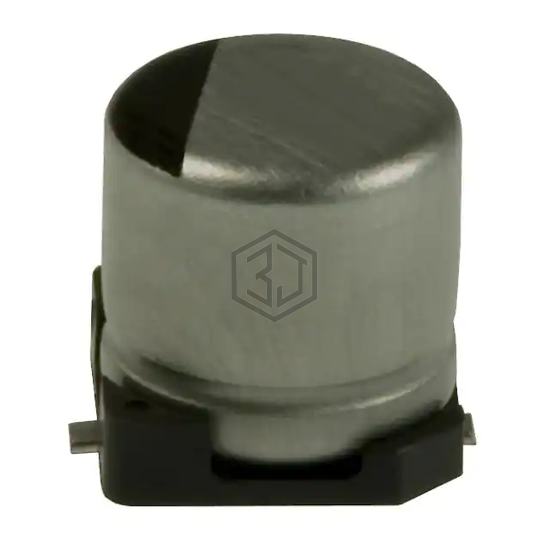

ECE-V1EA220WR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,317
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1EA220WR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 226SVL016MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V SMD | 82% | View |
| 226SVH035MER | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 35V SMD | 79% | View |
| 16SEV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 77% | View |
| UCM1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 73% | View |
| EDK226M035A9GAA | KEMET | CAP ALUM 22UF 20% 35V SMD | 69% | View |
| UWP0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 64% | View |
Submit your RFQ for ECE-V1EA220WR and get a quote within 24 hours.
