CAP ALUM 22UF 20% 6.3V SMD

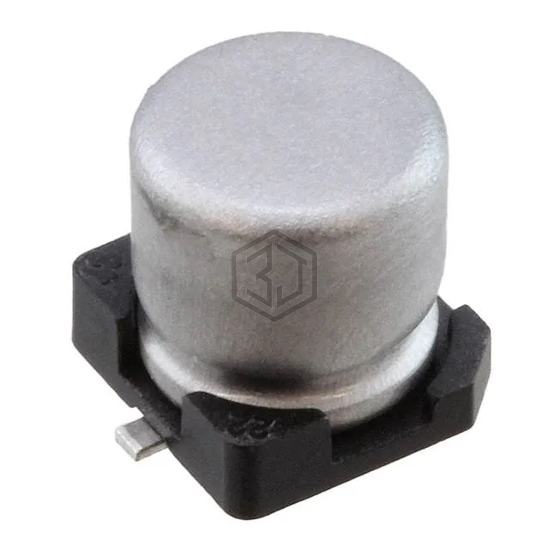

UWP0J220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 42 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3SGV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 96% | View |
| UWZ0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 88% | View |
| 16SEV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 76% | View |
| UT226M010HCHTA | Aillen | CAP ALUM 22UF 20% 10V SMD | 72% | View |
| 10SEV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 10V SMD | 70% | View |
| 226SVL016MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V SMD | 64% | View |
Submit your RFQ for UWP0J220MCL1GB and get a quote within 24 hours.
