Panasonic Electronic Components
CAP ALUM 1000UF 20% 10V SMD

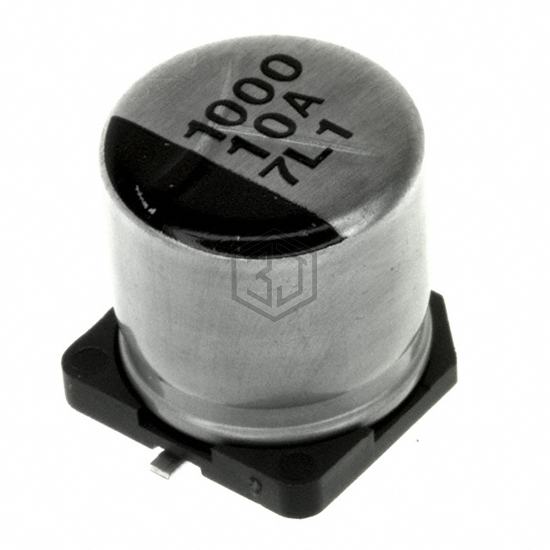

ECE-V1AA102P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,955
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 580 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1AA102P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CEE1A102MCB10A5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 100% | View |
| EMVE100ADA102MJA0G | United Chemi-Con | CAP ALUM 1000UF 20% 10V SMD | 89% | View |
| UT108M010HGKTA | Aillen | CAP ALUM 1000UF 20% 10V SMD | 81% | View |
| UWZ1A102MCL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 80% | View |
| MAL215097513E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 78% | View |
| 16SEV1000M12.5X13.5 | Rubycon | CAP ALUM 1000UF 20% 16V SMD | 74% | View |
