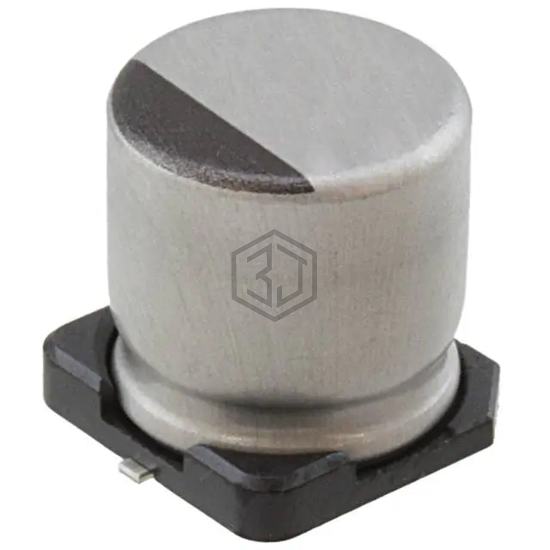

CAP ALUM 1000UF 20% 10V SMD
UWZ1A102MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 465 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT108M010HGKTA | Aillen | CAP ALUM 1000UF 20% 10V SMD | 98% | View |
| 108SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 6.3V SMD | 82% | View |
| CEE1A102MCB10A5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| AFK108M10G24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V SMD | 77% | View |
| EEE-FK0J102GL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 71% | View |
| 6.3SGV1000M12.5X13.5 | Rubycon | CAP ALUM 1000UF 20% 6.3V SMD | 69% | View |
Submit your RFQ for UWZ1A102MCL1GS and get a quote within 24 hours.
