Panasonic Electronic Components

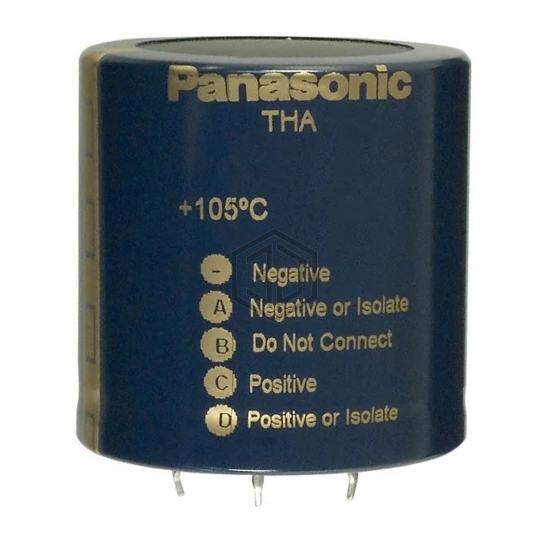

CAP ALUM 560UF 20% 400V SNAP
ECE-T2GA561EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 5,422
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 296mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T2GA561EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43515C5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 86% | View |
| 250MXG560MEFCSN25X35 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 80% | View |
| MAL215983561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 78% | View |
| B43642A2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 68% | View |
| 860080575018 | Würth Elektronik | CAP ALUM 560UF 20% 35V RADIAL | 65% | View |
| B43508A2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 65% | View |
Submit your RFQ for ECE-T2GA561EA and get a quote within 24 hours.
