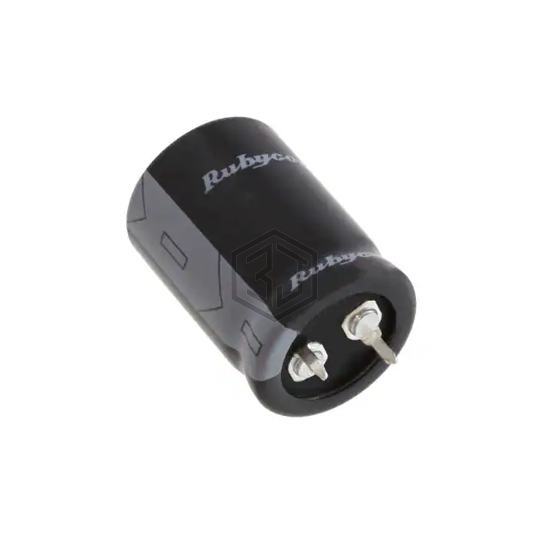

CAP ALUM 560UF 20% 250V SNAP
250MXG560MEFCSN25X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 2,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.925 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215983561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 95% | View |
| ELXM221VSN561MR30S | United Chemi-Con | CAP ALUM 560UF 20% 220V SNAP | 87% | View |
| B43642A2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 85% | View |
| B43508A2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
| EEU-FM1V561LB | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 74% | View |
| B43515C5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 70% | View |
