Panasonic Electronic Components

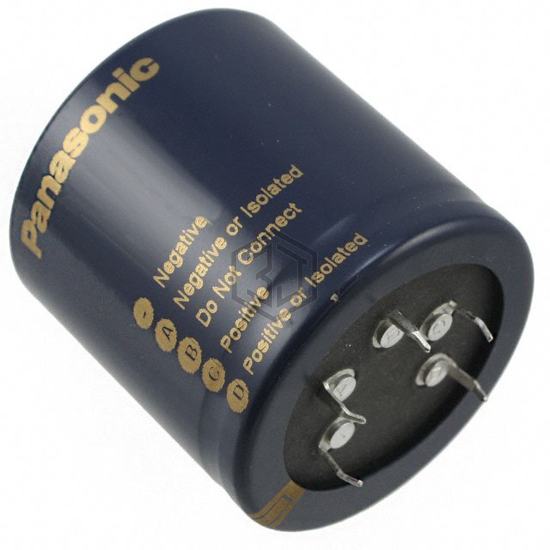

CAP ALUM 22000UF 20% 100V SNAP
ECE-P2AP223HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 3,405
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.622" (92.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2AP223HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K223MKZS | Nichicon | CAP ALUM 22000UF 20% 80V SOLDER | 86% | View |
| ALC80D223EH063 | KEMET | CAP ALUM 22000UF 20% 63V SNAP | 79% | View |
| LKG1H223MKZS | Nichicon | CAP ALUM 22000UF 20% 50V SOLDER | 68% | View |
| MAL205057223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 40V RADIAL | 63% | View |
| 25USC22000MEFCSN25X50 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 56% | View |
| B41231A7229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 35V SNAP | 55% | View |
Submit your RFQ for ECE-P2AP223HA and get a quote within 24 hours.
