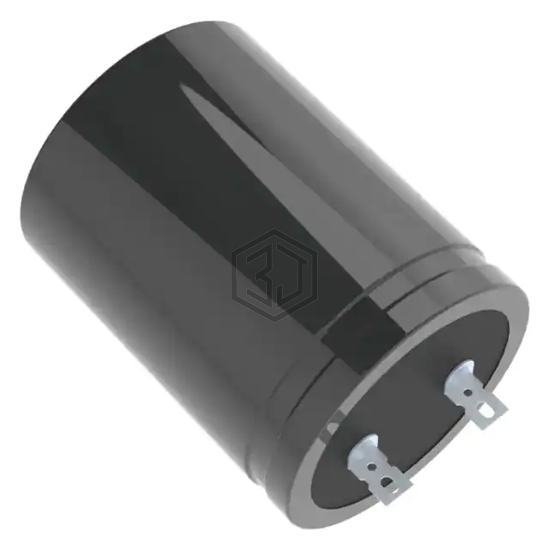

CAP ALUM 22000UF 20% 50V SOLDER
LKG1H223MKZS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 50V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Solder Lug.
In Stock: 9,941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 10.5 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 2.480" Dia (63.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALC80D223EH063 | KEMET | CAP ALUM 22000UF 20% 63V SNAP | 89% | View |
| MAL205057223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 40V RADIAL | 86% | View |
| LKG1K223MKZS | Nichicon | CAP ALUM 22000UF 20% 80V SOLDER | 72% | View |
| 35USG22000MEFCSN35X40 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 69% | View |
| MAL216256223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 53% | View |
| MAL205146223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V RADIAL | 52% | View |
